High Reliable, Safe, Energy Saving
and Environmental friendly: introducing the newest

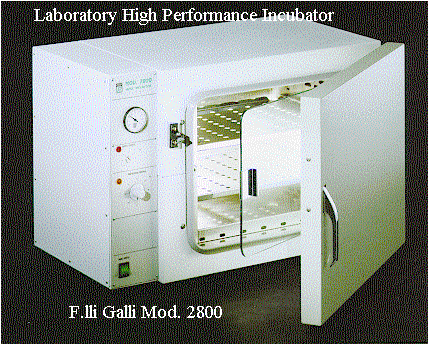

generation of Galli Incubators Mod.2800.
A
complete range of models, sizes and accessories offers
solutions to your specific applications
- Commitment
to environmental safety: asbestos, mercury,
cadmio end CFC free
- All
components used can easily be separated and
recycled
- Modular,
powder coated paint exterior finish, solvent-free
- Compact
dimensions and stackable models
- Height
adjustable feets from 1° to 5° size
- Lockable
casters, from 6° to 8° size
- High
quality insulation, cool outer surface and low
energy consumption
- Adjustable
door locks and hinges
- Easy
to clean and replace high temperature silicone
seal
- Glass
inner door to sample inspection
- Inner
casing with rounded corners made of Stainless
Steel DIN 1.4301
- N°2
Stainless Steel Perforated , non-tip shelves
- Special
air ducts make the most of temperature
distribution
- Fresh
air pre-heating
- Vents
socket for external connections
- INCOLOY
800 armored heaters
- Rapid
heat-up and recovery of temperature
- Excellent
uniformity and stability of temperature
- Quick
access to heaters ad to components for easy
maintenance
- Modular
design control panel (96x96 mm)
- Supply
cable with grounded plug
- Fuses
- Main
switch
- Precision
fluid expansion thermoregulator
- Indipendent
adjustable Safety thermostat Class 3.1 DIN 12880
- Mercury
free, control thermometer
- Warning
lights
- Instructions
for use and wiring diagram
- Safety:
CLASS 3.1 DIN 12880
- Conformity
to CEI 62-25 IEC 1010
OPTIONALS
- OP101
Micropr. controller PID Digital, PT100 probe and
zero crossing Solid State Relay
- OP111
Micropr. programmer PID digital with 11 segments,
PT100, SSR
- OP119
Micropr. programmer PID digital with 19 segments,
PT100, SSR
- OP199
Micropr. programmer PID digital with 128
segments, PT100, SSR
- OP1DE
Decontamination system
- OP200
Calibration certificate
- OP210
RS232C interface
- OP215
PT100 connection
- OP220
Alarm connection
- OP230
Manual reset overtemperature
- OP310
Temperature recorder
- OP410
12 hours timer
- OP424
24 hours timer
- OP407
07 days timer
- OP499
999 Hours digital timer
Choice of
either natural convection or forced air system
- OP500
Forced air
- OP510
Speed regulator
- OP511
Door switch
Cooled
versions for under ambient temperature
- OP515
Cooling system
- OP520
Frontal air flap control
- OP610
Door windows
- OP620
Safety glass door window
- OP630
Internal light
- OP640
Door lock with key
- OP700
Extra shelve
- OP800
Through hole
- OP805
Inner electrical outlet
- OP810
Fresh air filter
- OP815
Fresh air blower
- OP820
Exhaust air filter
- OP900
Tight inner chamber
- OP910
Inert gas connection
- OP920
Inert gas flowmeter
- OP950
Other power supply
|
