G-BT

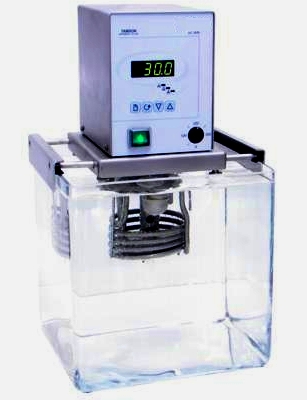

The G-TB unit
can be used for heating or circulating.
The bracket
can be placed on a bath or tank. (not Included)
The width of
the bracket can be adjusted between 186 and 422 mm. The unit is
equipped with fluid level detection.
Completely
stainless steel
Auto tuning,
high precision
Fluid level
detection
Easy to
operate
1100W heating
power
Safety
Thernmostat
Maximum
Temperature +200°C
Pump 7 l/min
250mbar
Options
1600W heater
Optional
RS232 Interface Optional
G-E5
Working temp. range:
25...100 °C
… with external cooling
-30...100 °C
Temperature stability: ±
0,05 K
Pump: Flow rate 5 l/min,
Pressure 0,12 bar
Heat power: 1 KW
Temperature display /
Solution: LED / 0,1 K
Temperature setting /
Solution: digital / 0,1 K
Temperature controller:
adjustable set point limitation and alarm
Timer with alarm 0 -
99,99 min
Safety class DIN 12876:
3
Power supply : 230 V /50
Hz
Dimensions (wxdxh): 120
x 130 x 330 mm
Weight (approx.): 3 kg
G-E5S
Working temp. range:
25...150 °C
… with external cooling
-50...100 °C
Temperature stability: ±
0,05 K
Pump: Flow rate 5 l/min,
Pressure 0,12 bar
Heat power: 1 KW
Temperature display /
Solution: LED / 0,1 K
Temperature setting /
Solution: digital / 0,1 K
Temperature controller:
adjustable set point limitation and alarm
Timer with alarm 0 -
99,99 min
Safety class DIN 12876:
3
Power supply : 230 V /50
Hz
Dimensions (wxdxh): 120
x 130 x 330 mm
Weight (approx.): 3 kg
GE20
Working temperature
range: Approx. 30...200 °C (short-time to 250 °C)
Temperature range with.
ext. cooling: -60...200 °C (short-time to 250 °C)
Temperature controller:
adaptive PID-Control for different thermostat liquids
Temperature stability
DIN 12876-2: ± 0,01 K (at 70°C in water)
Temperature measurement:
PT 100 linear
Temperature scale:
digital, display
Temperature setting:
digital, Touch Panel
Cryo-control: Thermostat
E 20 K
Calibration:
„SET“-temperature (standard 70°C)
Resolution: 0,1 K
Program operator: 2
applets with 10 segments each
Heat power: 1,8 KW
Pump Flow rate: 8 l/min
Pressure: 0,2 bar
Error message: empty
bath vessel, exceeding temperature
error temperature
sensor, error software and hardware
Interface: RS 232 (V.24)
External sensor: Port
for Pt 100
Safety class DIN 12876:
3
Power supply : 230 V /50
Hz
Dimensions: 120 x 130 x
335 mm
Weight (approx.): 3 kg
G-C5
Working temperature
range: 30°C...150 °C (at minimum pump capacity)
Temperature range with
cooling: -50°C...150 °C (with external cooling)
Temperature stability: ±
0,05 K
Pump: Double pump with
double-throw control
Double pump: Flow rate:
pressure 20 l/min intake 18 l/min
Pump height: pressure
3,0 m intake 2.0 m
Heat power: 1,8 KW
Temperature setting /
Resolution: digital / 0,1 K
Thermostat:
microprocessor controlled, adjustable
set point demarcation
and alarm
Safety class DIN 12876:
3
Power supply: 230V / 50
Hz
Dimensions (W*D*H): 260
x 130 x 310 mm
Weight: 5,0 kg
G-C20
Working temperature
range approx. +30 °C...250 °C (at minimum pump capacity)
Operating temperature
range with ext. cooling: -60 °C... 250 °C
Temperature controller:
adaptive PID controller for different thermostat liquids
Temperature stability
DIN 12876-2: ±0,01 K , (with 70°C in water)
Temperature sensor: Type
Pt 100
Temperature scale:
digital on graphic display
Temperature setting:
digital with Touch Panel
Cryo-control: Thermostat
C 20 K
Calibration: on
"SET"-Temperature, standard 70 °C
Display-Resolution 0,1 K
Program settings: 2
applets with 10 segments each
Heat power 1,8 KW
Pump: Double pump with
double-throw control (min/max)
Double pump Flow rate:
Pressure - 20 l/min Intake - 18 l/min
Pump-height: Pressure -
3,0 m Intake - 2,0 m
Power supply: 230 V
50/60 Hz
Safety class DIN 12876:
3
Error message: empty
bath vessel
exceeding temperature
error temperature sensor
error software and
hardware
Interface: RS 232 (V.24)
External sensor: Port
for Pt 100
Dimensions (W*D*H):
260*130*310 mm / Depth from bath top edge 170 mm
Weight: 5,0 kg
