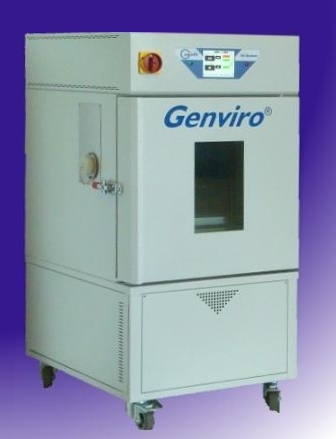

Questi apparecchi di dimensioni molto compatte offrono ottime performance termiche e climatiche.

Disponibili tre campi di temperatura da -20°C, -40°C, -60°C fino a +150°C

Disponibili 2 Volumi interni 22,5 Litri oppure 64,0 Litri

Complete di tutto quello che serve :

Programmatore Digitale fino a 9 Segmenti

Interfaccia RS-485

Regolatore di Sicurezza contro le Sovra e Sotto Temperature

2 Fori Passante diam.25 mm, uno per lato.

Subito pronte per l’uso.

Marcatura CE

Servizio e Garanzia F.LLI GALLI

Le Camere Climatiche dalla serie Platinous sono il risultato sono in grado di offrire performance eccellenti, riproducibilità, sicurezza, risparmio energetico nel pieno rispetto dell’ambiente.

Queste camere da anni vengono utilizzate in molte industrie come quella Automobilistica, Elettrotecnica, Elettronica e dei Semiconduttori, Edile e del Materiale da Costruzione, Chimica, Farmaceutica, Biologica e Biotecnologia, Aeronautica e della Difesa.

Marcatura CE + Servizio e Garanzia F.LLI GALLI

Celle Climatiche PR

Celle Climatcihe PL

Celle Climatiche PSL

Celle Termostatiche PU

Celle Termostatiche PG

Esepc – Galli Walk-in type Climatic Chamber and Temperature Chamber

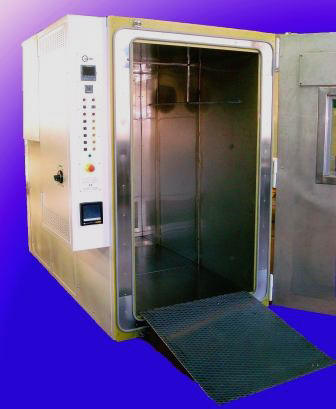

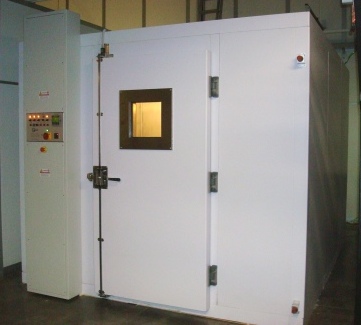

Espec offre una serie di Camere Climatiche e Celle Termostatiche di tipo Walk-In Accessibili in 8 diverse misure, con un volume interno da 4,2 m3 a 52.7 m3. Il campo di temperatura può andare da -40°C a +80°C ed anche +120°C, il controllo dell’Umidità Relativa dal 10% al 95%.

Espec offer the walk-in type Temperature (Humidity) Chambers H-Series in 8 sizes with an inside capacity from 4,2 m³ to 52,7 m³. The standard temperature range of the chambers is -40 °C to +80 °C. Highest adjustable temperature may be raised to +120 °C by changing the heat insulation specifications. The chambers work within a humidity range of 10 % r. H. to 95 % r. H.

Siamo inoltre in grado di progettare e realizzare Celle Climatiche e Camere Termostatiche Walk-In Accessibili “su misura”

Anche in versione ATEX Antideflagrante, con certificazione TUV ufficiale.

We offers a compact thermal shock chamber ideal for testing of small, low-volume specimens.

Equipped with superior temperature recovery performance capable of answering the requirements of strict test specifications, this thermal shock model offers a wide test area in a compact, slim design.

• A temperature recovery time of less than 5 minutes is achieved in 2 zones (+150°C and -65°C ) without auxiliary cooling.

• Complies with MIL-STD-883E and other specification test standards

• Uniform temperature distribution across specimens.

• Uses a color LCD interactive touch-screen system designed for thermal shock testing.

• Reduced power consumption?B

• 35% reduced footprint

• CE Marked +Service and Warranty F.LLI GALLI.

Model	TSE-11-A
Temperature range	High temp. chamber	+60 to +200°C
	Low temp. chamber	-65 to 0°C
Temperature recovery performance	Recovery conditions	•2 zones    High temperature    exposure:+150°C,30min    Low temperature    exposure:-65°C,30min •Sensor position   :Upstream of specimens •SpecimensPlastic   :molded IC 2kg
	Recovery time	Within 5 minutes
Inside dimensions	320 x 148 x 230 (W x H x D mm)
Power supply	AC200V 3 3W 50/60Hz AC220V 3 3W 60Hz AC380V 3 4W 50Hz AC400/415V 3 4W 50Hz

Two-zone thermal shock chamber ideally suited for MIL/IEC/JASO Japanese and international test standards. This new Thermal Shock Chamber from ESPEC is capable of subjecting specimens to uniform thermal stress with a 100 L test area and outstanding thermal distribution characteristics, making them ideally suited for use in a wide range of applications from research and development to inspection and production.

Model	Temperature range	Test area dimensions W x H x D mm (in) / Outside dimensions W x H x D mm (in)
TSD-100	High temp chamber: +60 to +200°C Low temp chamber: -65 to 0°C	710 x 345 x 410 (27.95 x 13.58 x 16.14inch) / 1100 x 1885 x 1965 (43.31 x 74.21 x 77.36inch)

Compatible with MIL-STD-883 and other test standards

The chamber is compatible with test standards such as MIL-STD-883, JIS C 0025, and JASO-D001. (see p.9, 10)

Improved temperature distribution performance

The chamber feature outstanding temperature distribution characteristics, 30% better than previous ESPEC products during temperature recovery, and include features to ensure uniform air flow to the test area. The specimens are thus subject to a more uniform thermal stress, with variations in test results between specimens minimized.

Reduced test time by moving between two test areas

Temperature exposure is quickly changed by moving the test area up and down between the high-temperature and low-temperature chambers, reducing the time taken to reach the preset temperature as well as test time.

Incorporate new Specimen Temperature Trigger (STT) function

The chamber incorporate an STT function which monitors the specimen temperature using two sensors attached to the specimen and starts to count the exposure time or proceeds to the next step once the specimen temperature reaches the preset temperature. This eliminates the need for advance pretesting, reducing the overall test time and ensuring accurate specimen temperature attainment. The specimen and test area temperatures can be recorded by connecting a temperature recorder.

Reduced power consumption

From the customer's viewpoint, reducing power consumption is a major issue. The TSD-100 incorporates a number of features, including variable refrigeration capacity control using electronic expansion valves, to reduce overall power consumption by approximately 30% (compared with previous ESPEC products).

CE Marked +Service and Warranty F.LLI GALLI.

Our Thermal Shock Chamber offer totally new performance and style. Shortened temperature recovery times and temperature rise and fall times, reduced power requirements, the use of HFC refrigerants, and the adoption of touch panel instruments for operation settings make the TSA series even easier to use and more environmentally friendly.

• A revised structure and the development of a new refrigeration control system have realized a 37% reduction in power consumption.

• A temperature recovery time of less than 5 minutes is realized for the 2-zone (+150°C and -65°C) and 3-zone circulated air (less than 10 minutes for the TSA-201S and TSA-301L).

• The air blower mechanism uses a side flow system for superior sample temperature distribution.

• Material designations are used on plastic components to facilitate easy material recycling.

• Operation noise generated by the unit has been reduced to less than 65 dB to improve the work environment.

• CE Marked +Service and Warranty F.LLI GALLI.

Model Power supply Temperature range Test area dimensions W x H x D mm (in) TSA-71H 200VAC 220VAC 3 3W 50/60Hz 380VAC 400/415VAC 3 4W 50Hz High temp chamber: +60 to +200°C Low temp chamber: -70 to 0°C 410 x 460 x 370 (16.1 x 18.1 x 14.6) TSA-71S TSA-101S 650 x 460 x 370 (25.6 x 18.1 x 14.6) TSA-201S 650 x 460 x 670 (25.6 x 18.1 x 26.4) TSA-41L High temp chamber: +60 to +200°C Low temp chamber: -65 to 0°C 240 x 460 x 370 (9.4 x 18.1 x 14.6) TSA-71L 410 x 460 x 370 (16.1 x 18.1 x 14.6) TSA-101L 650 x 460 x 370 (25.6 x 18.1 x 14.6) TSA-301L 970 x 460 x 670 (38.2 x 18.1 x 26.4)
